GI (Galvanized Iron) Cable Tray Manufacturers in India, Suppliers and Dealers in India
Electrotech Industries, former GI cable tray manufacturers, suppliers and dealers in India, is offering the most durable GI cable tray, which is made from galvanized stainless steel. This tray is a metal tray made of galvanized iron (GI) that supports and organizes electrical cables and wiring. The zinc coating on the tray makes it resistant to corrosion, moisture and humidity.
Due to its rigid structure, they are commonly used in commercial, industrial and residential structures. As compared to other trays, they are more durable and corrosion resistance and zinc coating helps for resisting moisture, humidity and any kind of environmental elements. Let’s check out its various types, benefits, applications and features also!
Our multiple types of GI cable tray :
As former GI cable suppliers in India, we are providing the new mechanism of GI cables, which are highly used in multiple types of industries. Here we have listed some types, such as:

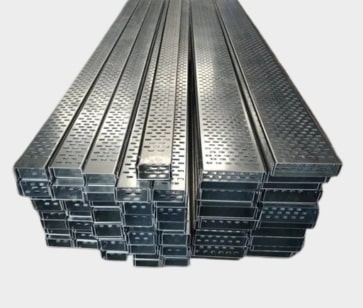

- GI Perforated Cable Tray: These GI cable trays are made with galvanized iron and are typically used for managing and supporting electrical cables in industrial and commercial spaces. The series of holes allow for better ventilation and heat dissipation, preventing wire overheating. Their structure makes them highly versatile for use in multiple heavy-duty industries.
- GI Ladder-Type Cable Tray:Our GI ladder-type cable trays are highly demanded by all types of industrial sectors and consist of two longitudinal side rails that are connected by rungs and give a ladder-like structure. Because of its structure, these are highly used in heavy-duty industrial sectors and give maximum ventilation that can help prevent any kind of wire heating. For using these wires in an outside environment, these GI cable trays are coated with zinc that can reduce any kind of UV rays impact.
- GI Solid Bottom Cable Tray: These durable GI cable trays are fully enclosed for managed systems. Their structure provides complete protection for wires against dust, moisture, and other environmental factors. GI solid-bottom cable trays are ideal for sensitive and communication cables. Recent updates, such as improved sealing mechanisms and ingress protection (IP) ratings, make them even more efficient in damp or corrosive environments. The use of aluminum makes handling and installation easier.
- GI Wire Mesh Cable Tray: Our technologically advanced wire mesh cable trays feature an open-grid design, offering excellent ventilation and quick drainage. These factors make them ideal for wet and industrial areas. Wire mesh cable trays are commonly used for data cables and fiber optics due to their lightweight structure and ease of installation. Premium models are available with electro-polishing or powder coating to prevent corrosion and extend service life.
Technical Specifications
For more technical information about out GI Cable tray, we have mentioned below a technical sheet such as:
| Parameter | GI Perforated Cable Tray | GI Ladder-Type Cable Tray | GI Solid Bottom Cable Tray | Wire Mesh Cable Tray |
|---|---|---|---|---|
| Material | Pre-Galvanized Steel or Hot-Dip Galvanized Steel | Pre-Galvanized Steel or Hot-Dip Galvanized Steel | Pre-Galvanized Steel or Hot-Dip Galvanized Steel | Galvanized Steel Wire |
| Thickness | 1.0 mm to 3.0 mm | 1.6 mm to 3.0 mm | 1.0 mm to 3.0 mm | 3.5 mm to 8.0 mm (Wire Diameter) |
| Width (mm) | 50 mm to 1200 mm | 150 mm to 1200 mm | 50 mm to 1200 mm | 50 mm to 900 mm |
| Height (mm) | 25 mm to 150 mm | 40 mm to 150 mm | 25 mm to 150 mm | 25 mm to 200 mm |
| Length (mm) | 2500 mm to 3000 mm | 2500 mm to 3000 mm | 2500 mm to 3000 mm | Standard 3000 mm, customizable |
| Load Capacity (kg) | Up to 75 kg/m | Up to 150 kg/m | Up to 100 kg/m | Light to medium load applications |
| Cable Support Span (mm) | 1200 - 2000 | 1500 - 3000 | 1200 - 2000 | 600 - 1200 |
| Ventilation Area (%) | 30 - 70 | 70 - 80 | 0 | 90 |
| Corrosion Resistance | Medium to High | High | Medium to High | Medium |
| Electrical Conductivity (Ohm) | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 | ≤ 0.5 |
| Temperature Range (°C) | -50 to +200 | -50 to +200 | -50 to +200 | -30 to +150 |
| Standards Compliance | IEC 61537, ASTM A653 | IEC 61537, ASTM A653 | IEC 61537, ASTM A653 | IEC 61537 |
| Installation Methods | Wall, Floor, Suspended | Wall, Floor, Suspended | Wall, Floor, Suspended | Suspended |
Features and Benefits of our GI Cable Tray
One of the best GI cable tray dealers in India, these all types of cable trays are made with multiple types of features inside and provide valuable benefits such as:
- Corrosion Resistance with Advanced Coatings: Our all types of GI cable trays are made with advanced galvanization methods such as hot-dip galvanization and are also improved with zinc coatings and also provide the new corrosion resistance techniques. The new nano-ceramic coatings in these cable trays help improve the resistance against rust.
- Enhanced Load-Bearing Capacity with Smart Structural Design: These modern GI cable trays are now integrated with new perforation patterns and reinforced edges, and these features can also increase load-bearing capacity without adding significant weight. The new design of this cable tray is made with new AI-based incorporated simulation, and it helps the operator to predict the actual weight of wire. These factors all help in giving more support to the heavy wires, such as power cables, data cables and bundled network cables also.
- Improved Ventilation for Cable Longevity:These new types of cable trays are made with specific holes that give maximum installation, and also some optimized perforation patterns can make better air circulation. The proper ventilation throughout the cables can prevent any kind of damage and also help improve cable performance for a longer period of time. Due to these overall features, these cable trays are mostly used in IT infrastructure and server rooms.
- Eco-friendly and Lightweight Material Composition: While manufacturing all types of GI cable trays, we have used pure forms of raw materials that are eco-friendly, lightweight and recyclable materials. These materials can improve the quality and also help with maintaining environmental sustainability. These trays are easier to handle, transport, and install and also reduce labor costs. Due to the recycling factor, these trays are also more cost-effective and helpful for use in small-scale industrial sectors as well.
Applications of our GI Cable Tray
Being the best GI cable tray manufacturers in India, all types of our cable trays are highly used in multiple types of industries, such as:
- Supporting and routing electrical power distribution cables
- Organizing and protecting industrial automation system wiring
- Securing high-voltage cables in various environments
- Managing solar panel wiring for power generation systems
- Routing network and communication cables efficiently and safely
- Supporting underground or buried cable installations effectively
- Managing HVAC control wiring in industrial applications
- Securing and guiding cables in offshore platforms
Frequently Asked Questions (FAQs)
Installation involves mounting the tray on supports at regular intervals, ensuring proper alignment for the safe routing of cables. It’s essential to secure the tray with fasteners and ensure correct spacing between supports.
The load-bearing capacity varies based on the size and material thickness. Typically, GI trays can support heavy cables, with some designed for over 200 kg depending on the configuration and span.
While GI cable trays themselves are not fireproof, they are made from galvanized steel, which has a high melting point. This makes them more fire-resistant than other non-metallic trays, providing some level of protection in case of a fire.
GI cable trays come in various types, including perforated trays, ladder trays, and solid-bottom trays. Each type is suited for specific cable management needs, depending on the environment and cable types.
As leading GI cable tray manufacturers, suppliers and dealers in India, we at Electrotech Industries are providing the best technological GI cable tray. These cable trays are made with pure forms of galvanized iron (GI) and help with improving the durability and using them in heavy-duty industrial sectors. All types of our cable trays are coated with zinc and hot-galvanized methods for resisting any kind of corrosion. For more information, contact us today!
